Dane Techniczne

Rama:: Alloy Frame / Virtual 4 link kinematic VLK; 27.5" and 29" compatible / geo adj. / Boost 148x12mm; 150mm travel / Shimano E-8000 integr. DT Battery; Tapered Headtube E2, Central Kickstand Mount

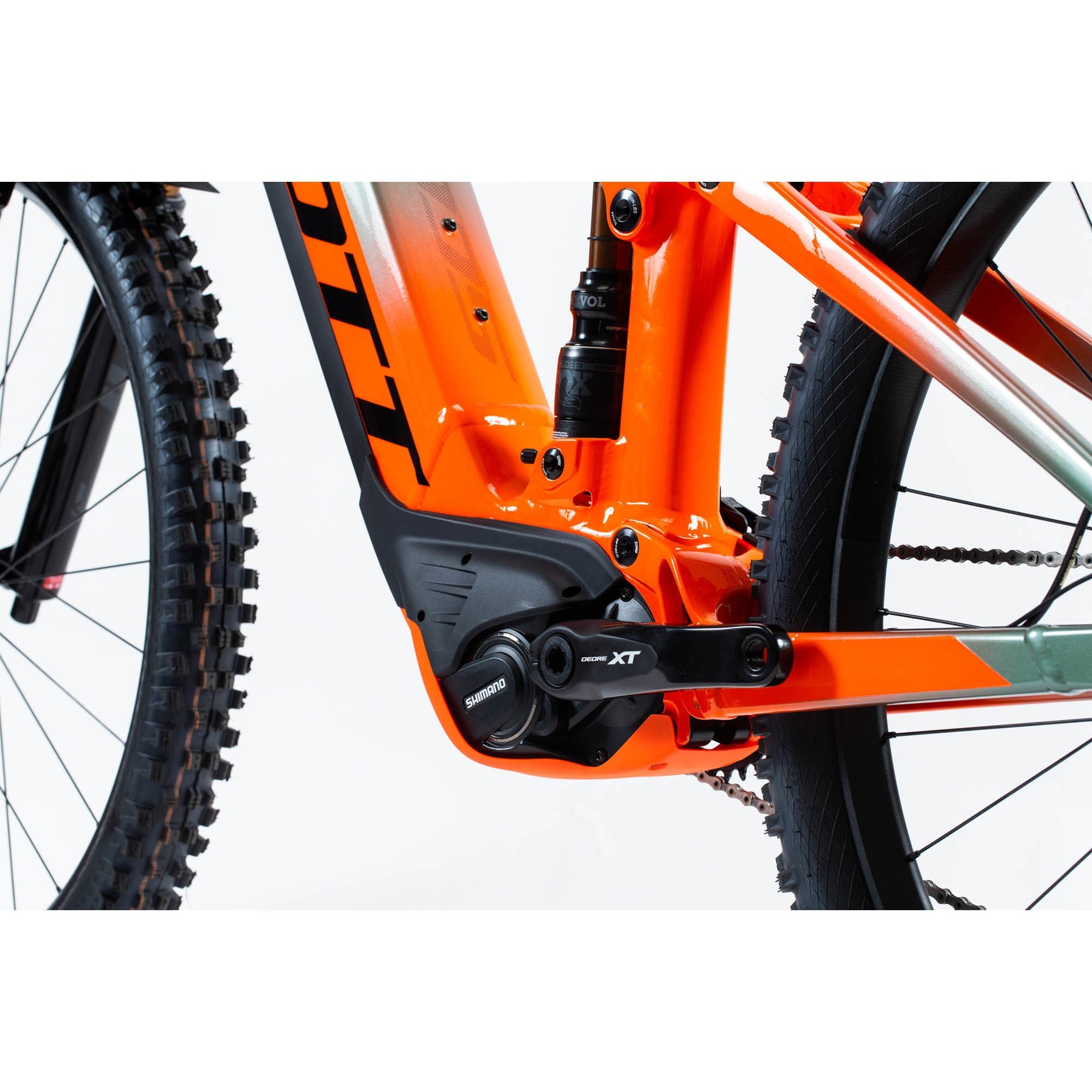

E-Drive System:: Shimano STEPS E8000; 250W w/integr. 500Wh Battery / SC-E8000 Display; Shimano 4A Charger; EU: 25kmh / US: 20mph
Skok:: Front: 150mm / Rear: 150mm
Widelec:: FOX 36 Float Factory Air / Kashima; FIT4 3-Modes with low Speed adj. / 15x110mm QR axle; tapered steerer / Reb. Adj. / Lockout / 150mm travel; / E-Bike
Amortyzator (Tył):: FOX NUDE TR EVOL Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control-Descend; DPS / Reb. Adj.; Travel 150-100-Lockout / 185x55mm
Zdalne sterowanie:: SCOTT TwinLoc Remote Technology; 3 modes front and rear / integ. Grip clamp

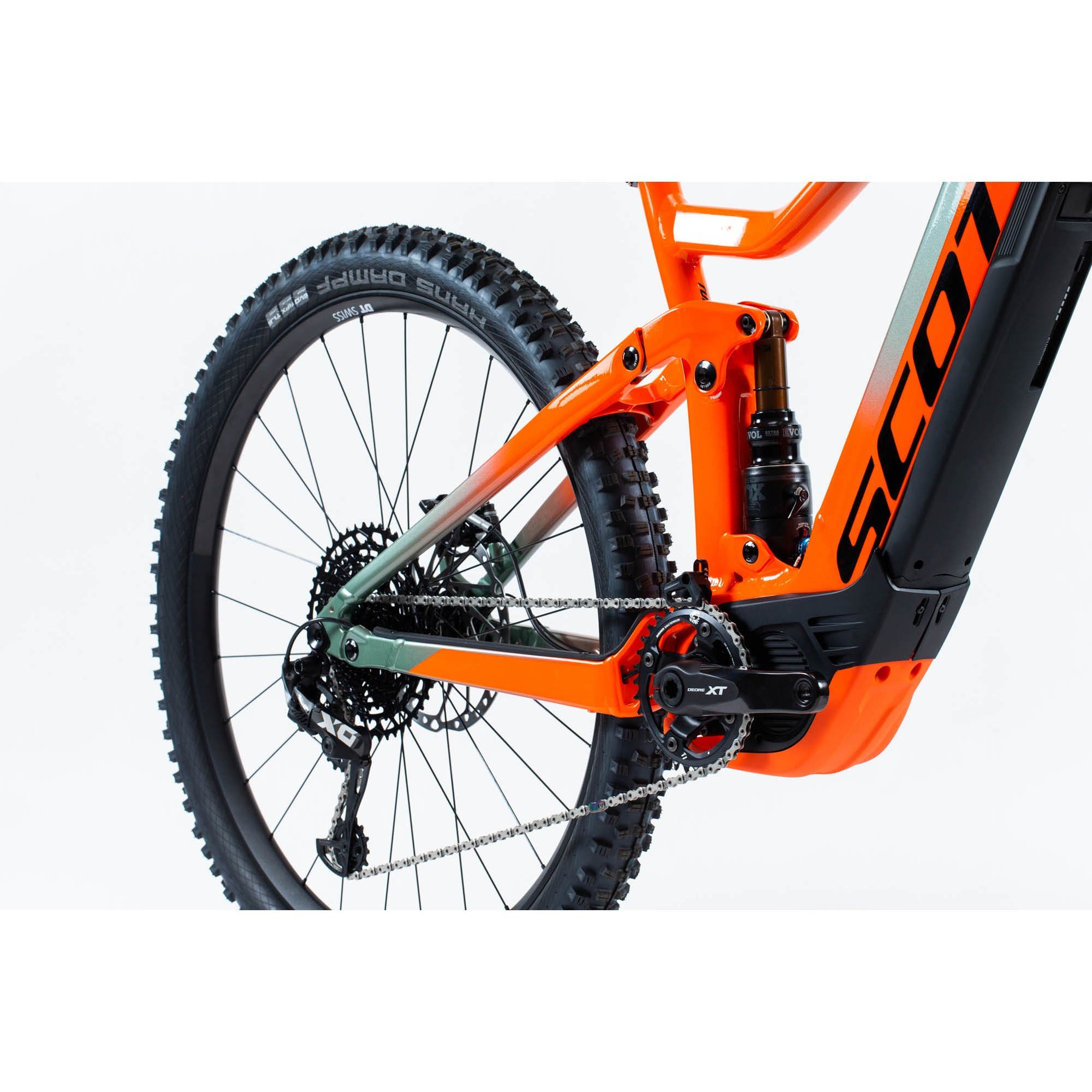

Przerzutka (Tył):: SRAM X01 Eagle / 12 Speed
Manetki:: SRAM GX Eagle Single Click
Klamki hamulca:: Shimano BL-M8000 XT
Korbowód:: Shimano STEPS FC-M8050 / 165mm / 34T
Łańcuch:: SRAM NX Eagle
Prowadnica łańcucha:: SCOTT custom; SRAM Eagle 34T / Alloy
Mostek:: Syncros FL1.5 / 2014 Alloy; integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8”
Kaseta:: SRAM PG1230 / 11-50 T
Hamulce:: Shimano BR-M8020 XT Disc; 203mm F&R / SM-RT64 CL Rotor

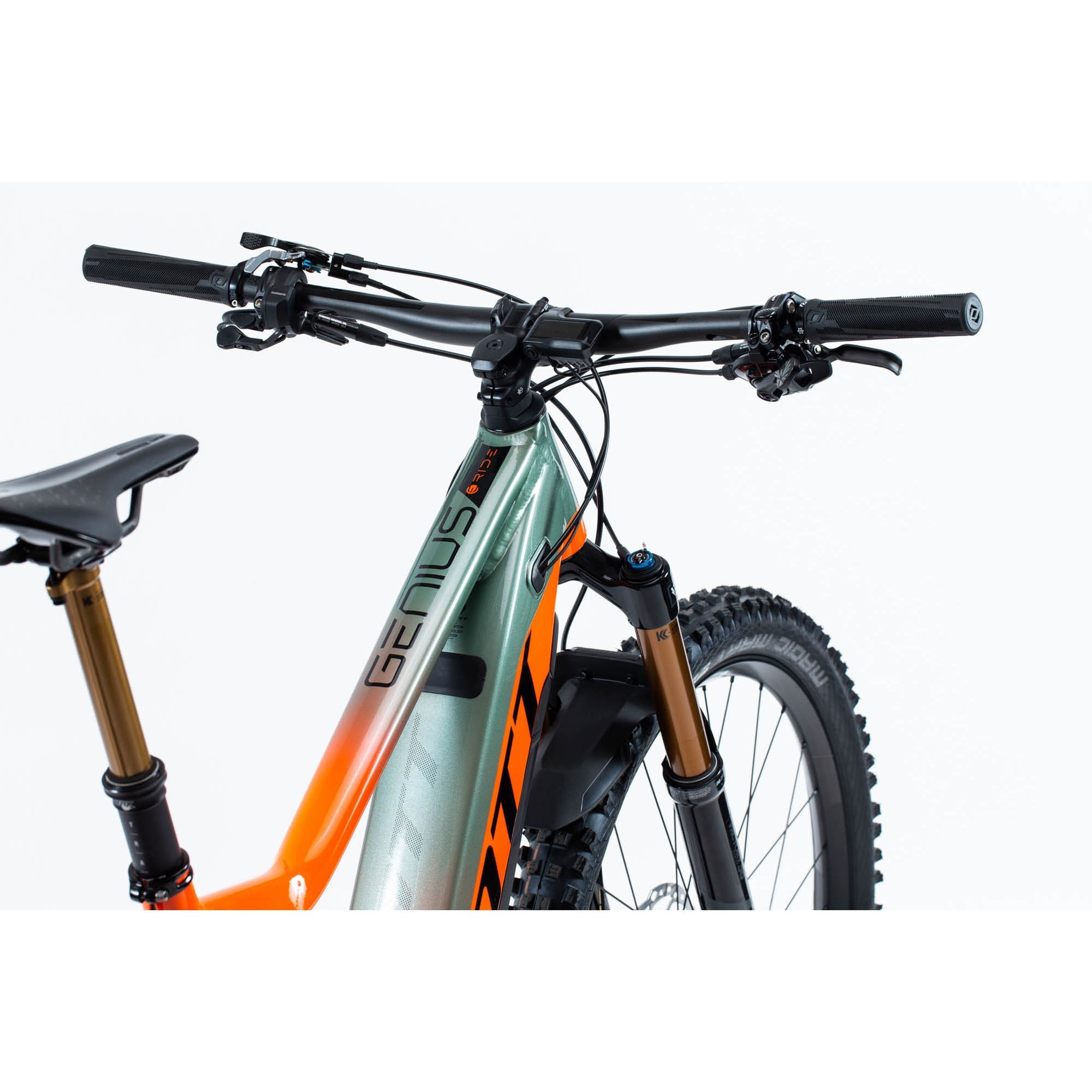

Kierownica:: Syncros FL1.0 Di2 mini Riser / Carbon; 12mm rise / 9° / 740mm; Syncros Pro lock-on grips
Sztyca:: FOX Transfer Dropper Remote; Kashima / 31.6mm / S size 100mm / M 125mm / L & XL; 150mm
Siodło:: Syncros Tofino 1.0 / Carbon rails
Stery:: Syncros FL1.5 Press Fit E2 / Tapered 1.5”-1 1/8”; OD 50/62mm / ID 44/56mm
Obręcze:: DT Swiss HX531 / 28H / 30mm
Opony:: Front: Schwalbe MagicMary; Snake Skin / TL-Easy / Apex / Addix Soft; Rear: Schwalbe Hans Dampf; Snake Skin / TL-Easy / Apex / Addix Speedgrip; 700 Series: 27.5x2.8” / 900 Series: 29x2.6”
Koła:: DT Swiss H1825 Spline CL; F: 15x110mm / R: 12x148mm Boost; 30mm Tubeless ready rim / 28H; DT RWS
Dodatki:: Syncros Trail Fender
Orientacyjna waga:: 23,60 kg; (waga orientacyjna dla rozmiaru M)
